Horizontal Drilling Bentonite

Product Description

Horizontal Drilling Bentonite

High-Performance Formula for HDD Operations

⚡ Rapid Mixing 🛡️ API/OCMA Standards 🌱 Eco-Friendly

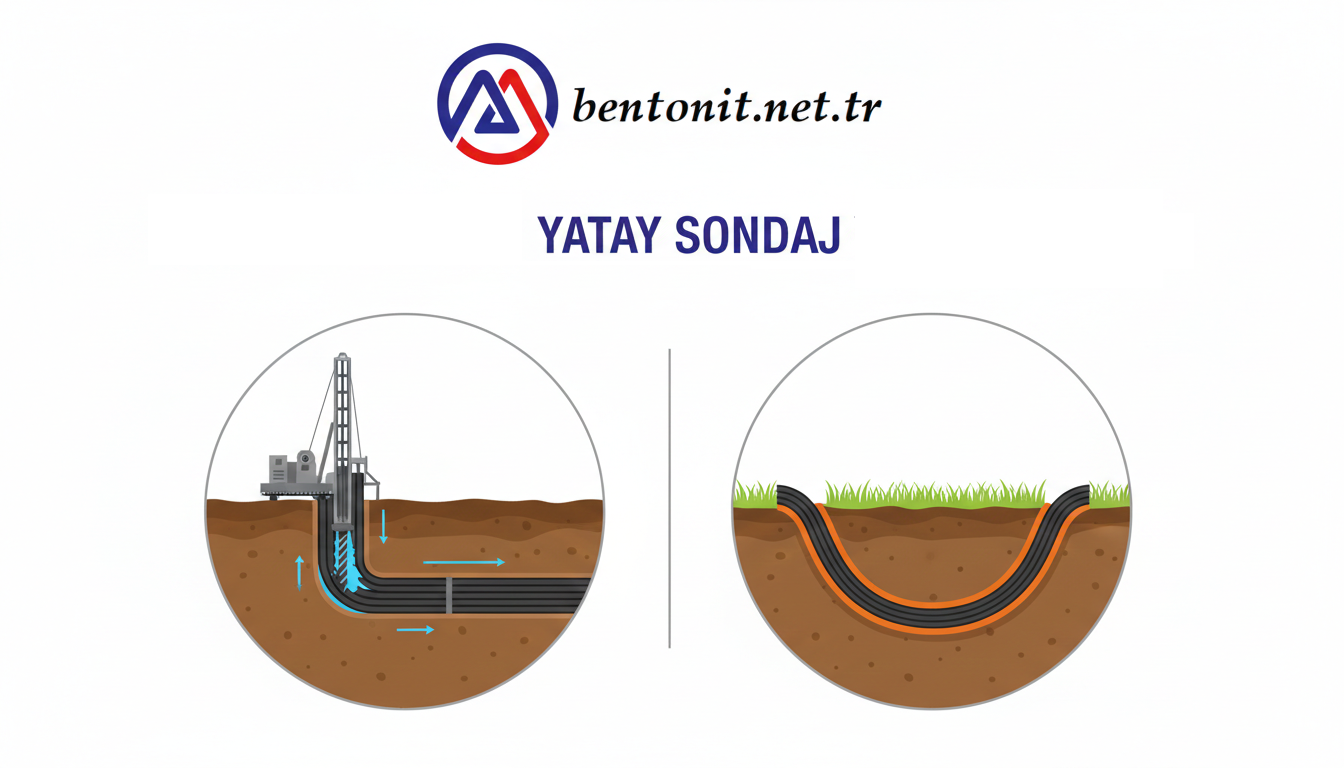

Specially formulated for Horizontal Directional Drilling (HDD) operations. Used as a lubricant in all types of rotary drilling systems and pipe pushing operations. Plays a critical role in the success of your operations with high viscosity, low fluid loss, and excellent suspension properties.

Technical Advantages

⚡

Instant Activation

Reaches maximum performance immediately without waiting time.

💧

Low Fluid Loss

Maximum 15 ml fluid loss in 30 minutes.

🌡️

Wide Temperature Range

Stable performance under variable temperature conditions.

🛡️

Wellbore Stability

Forms leak-proof thin filter cake, prevents collapse.

🔄

Excellent Suspension

Effective cuttings transport and hole cleaning.

🌱

Cost-Effective & Green

Reduces drilling costs, environmentally sustainable.

Technical Specifications

Parameter Value Unit
Density 0.87 ton/m³
Marsh Funnel Min. 60 sec
Fann Viscosity (600 rpm) Min. 38 cP
Fluid Loss (30 min) Max 15 ml
pH Value 9.0 - 10.5 -
Swelling Index Min. 34 ml/2g

Mixing Ratios

Soil Condition Amount (kg) Water Ratio (%)
🟢 Normal Conditions 20-30 2-3%
🟡 Sand & Gravel 31-40 3.1-4%
🔴 Fluid Loss Control 41-65 4.1-6.5%

⚙️ Mixing & Application

  • Water hardness affects performance. Fresh water recommended.
  • For best results, adjust water pH to 8.5-9.5 using soda ash.
  • Add slowly using jet/hopper mixer.
  • No additional polymers or additives required.
📦

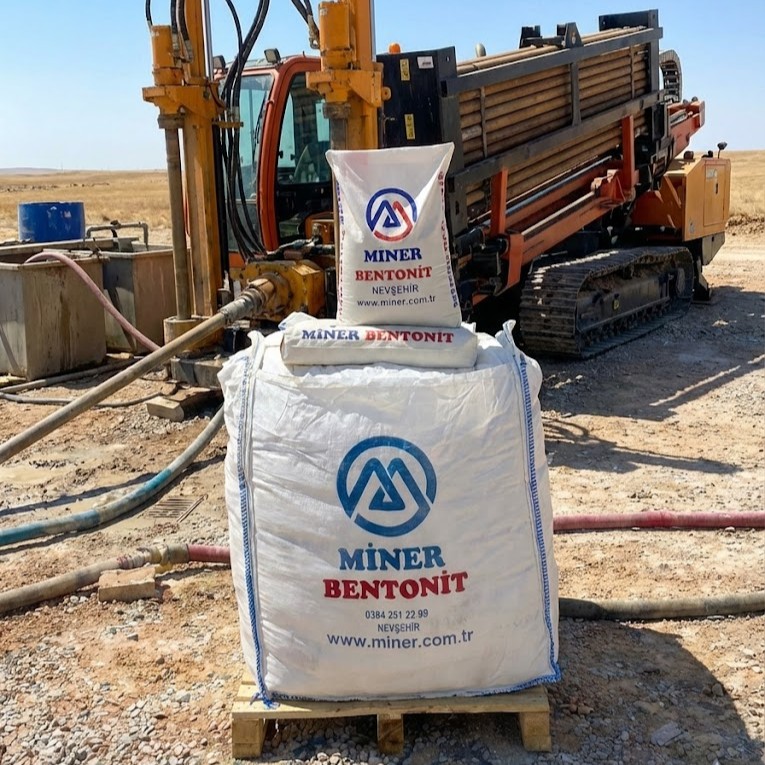

Packaging: 40 pieces of 25kg laminated big bags (FIBC) or valved PP bags. Waterproof and durable.

Supplier: Miner Madencilik Nakliyat Ticaret Ltd. Şti.

Nigde Yolu 10.Km Nevsehir | info@miner.com.tr | +90 384 251 22 99
